Vacuum chamber for product leak test


Vacuum chamber for pharmaceutical sector

We are finishing the qualification of a customized project for a pharmaceutical client in Spain, following its own requirements to adapt the chamber to their needs.

That vacuum chamber has been designed to detect potential leak on their products. A certain vacuum is achieved in order to force the liquid solution into going out of the close container (bottles in that case).

Such a project has been developed using high quality material with stringent quality protocols.

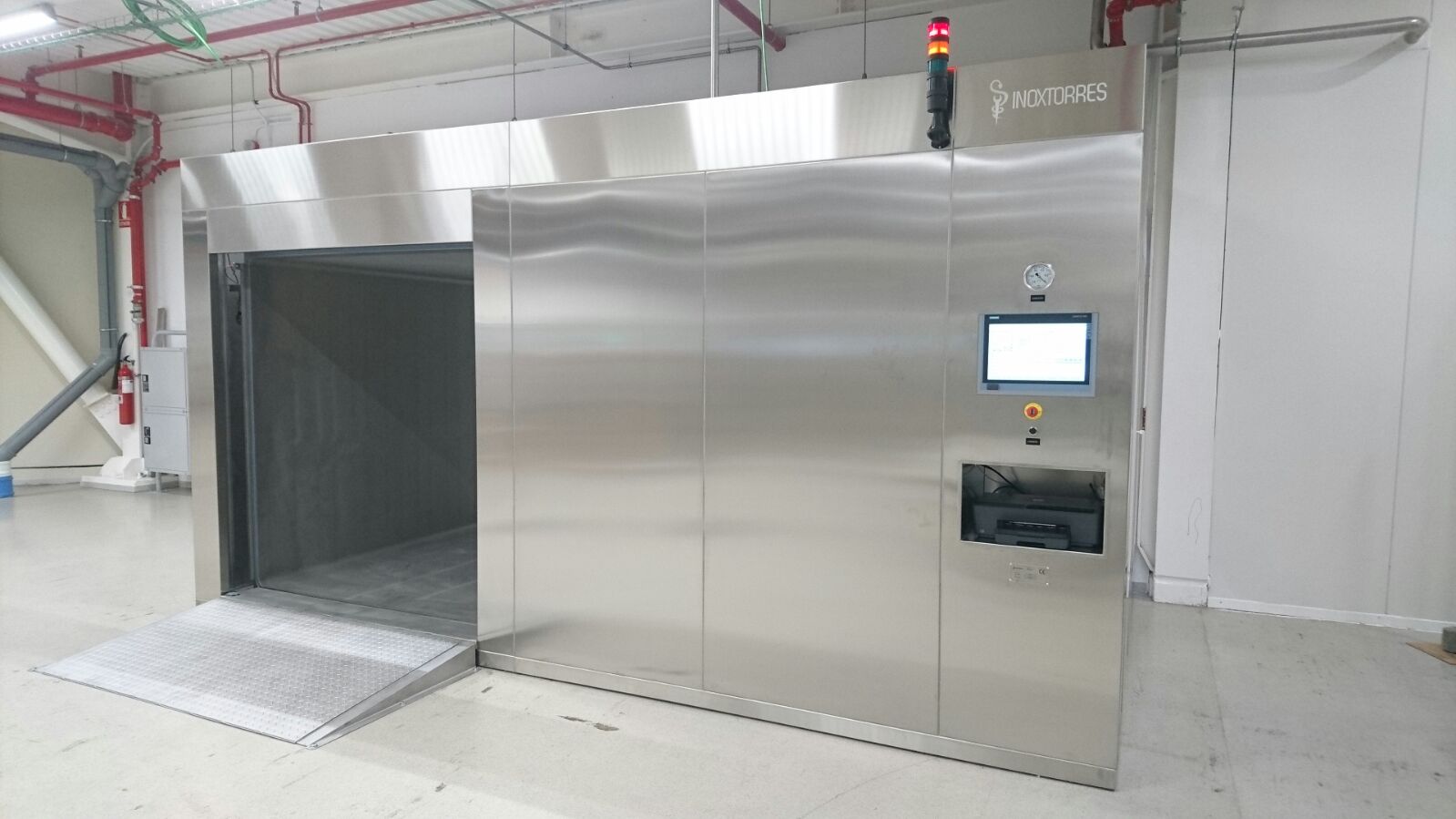

Cámara de vacío sector farmacéuticoThe vacuum chamber manufactured in Stainless steel has the following dimensions: 1.900mm width x 2.600mm depth x 2.000mm high. The door is horizontal sliding type, activated by a motoreducer. In terms of instrumentation, several sensors have been installed like pressure transducer, pressure switches, photocells or limit switches....

A SCADA system has been installed for supervision.

In addition to the design, manufacturing and commissioning, Inoxtorres together with RSD® have delivered a large quantity of documentation like component technical specifications, CE certificates, material certificates, user manual, hydraulic test,.... They are part of a full documentation file that we issue to the customer.

turnkey project based on innovative solutions is getting finished. Let's go for more customized chamber in 2017!

For further information regarding autoclave/chamber design, manufacturing, commissioning or qualificationcontact us.
